ASRock

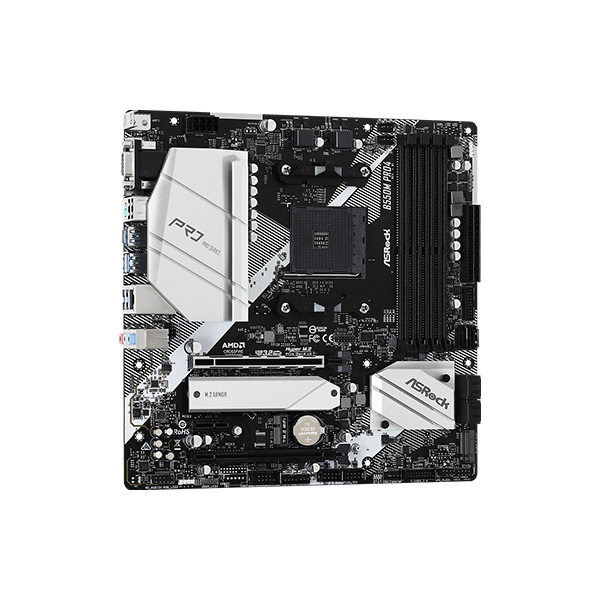

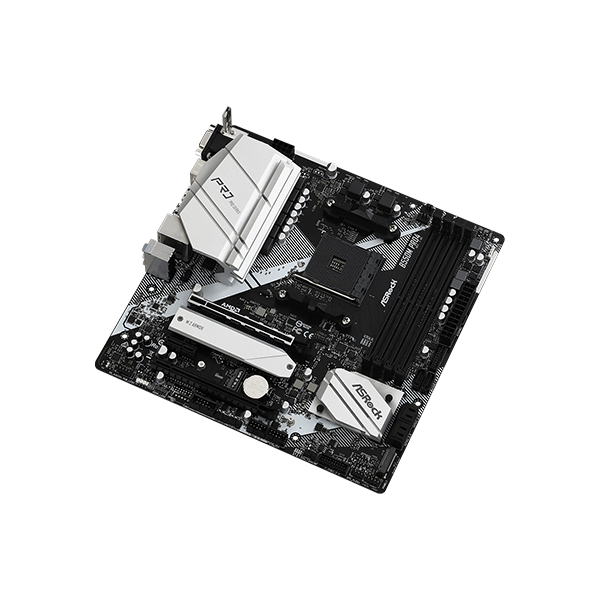

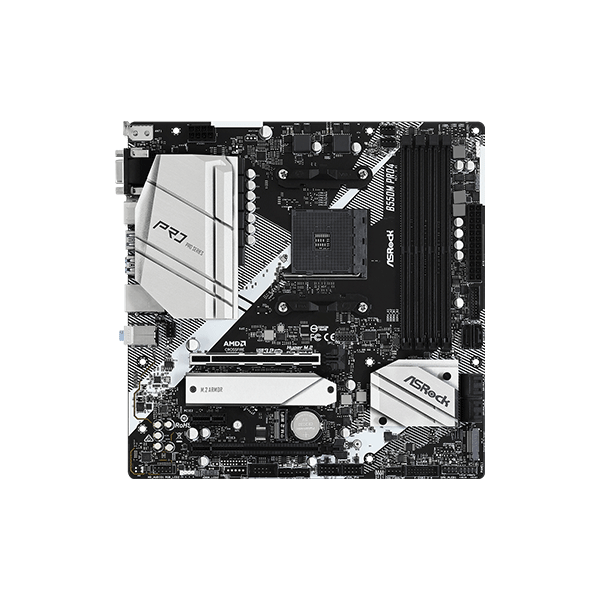

ASRock B550M PRO4 AM4 AMD B550 Micro ATX Motherboard

ASRock B550M PRO4 AM4 AMD B550 Micro ATX Motherboard

Dhs. 430.00 AED
Dhs. 600.00 AED Dhs. 430.00 AED
Sale Sold out
Tax included.
  • AMD AM4 Socket
  • ‎AMD B550 Chipset
  • Form factor Micro ATX
  • 4 x DDR4 DIMM Slots , Max. 128GB
Brand ASRock
CPU Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset AMD B550
Ethernet PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

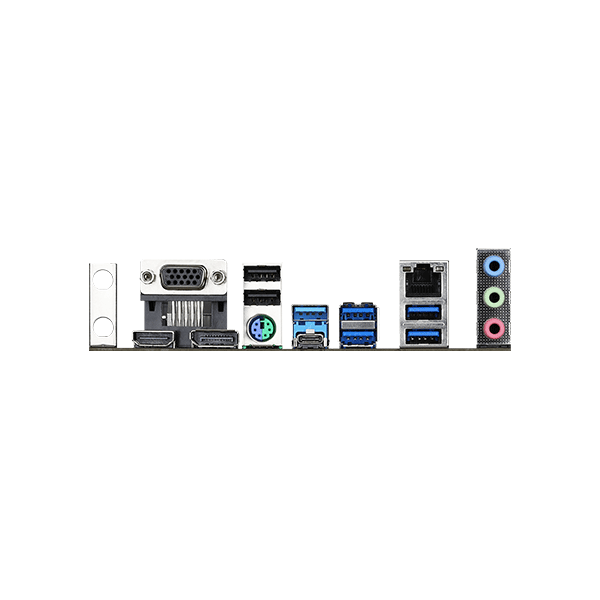

USB 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
Memory Slots Supports Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*, AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Internal I/O Connectors 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Expansion Slots AMD Ryzen series CPUs (Vermeer and Matisse): 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), AMD Ryzen series APUs (Cezanne and Renoir): 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), AMD Ryzen series APUs (Picasso): 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode) 1 x PCI Express 3.0 x1 Slot, Supports AMD Quad CrossFireX™ and CrossFireX™, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Graphics Device Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*, DirectX 12, Pixel Shader 5.0, Shared memory default 2GB. Max Shared memory supports up to 16GB.**, Three graphics output options: D-Sub, HDMI and DisplayPort 1.4, Supports Triple Monitor, Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz, Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), Supports HDR (High Dynamic Range) with HDMI 2.1, Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***, Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports, Supports Microsoft® PlayReady
Sound 7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Nahimic Audio
Operating System Microsoft® Windows® 10 64-bit / 11 64-bit
Form Factor Micro ATX 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Warranty 1 Year Warranty
View full details
