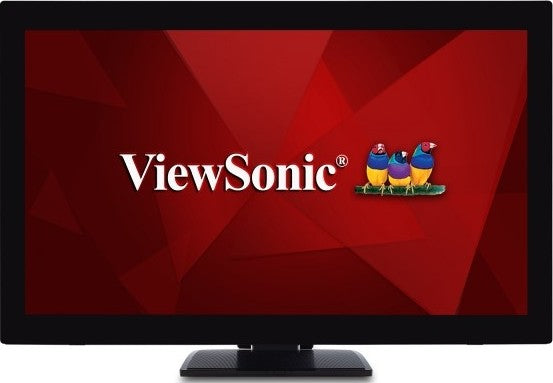

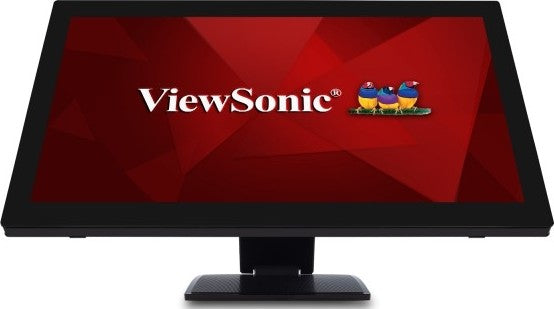

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. With SuperClear® MVA panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

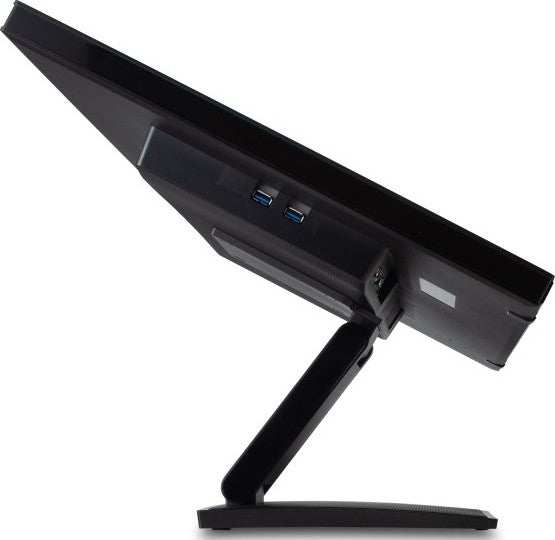

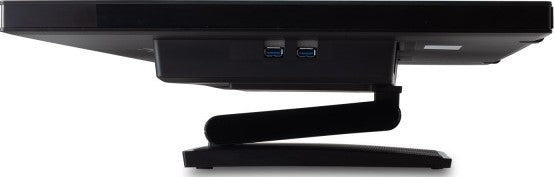

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
DISPLAY
DISPLAY SIZE (IN.)
27
VIEWABLE AREA (IN.)
27
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
3,000:1
DYNAMIC CONTRAST RATIO
50,000,000:1
BRIGHTNESS
230 cd/m2
BACKLIGHT LIFE (HOURS)
30,000
RESPONSE TIME (TYPICAL GTG)
12ms
RESPONSE TIME (GTG W/OD)
6ms
PANEL TYPE
MVA
COLORS
16.7M
COLOR SPACE SUPPORT
6 bit + Hi-FRC
VIEWING ANGLES
178º horizontal, 178º vertical
LIGHT SOURCE
LED
PANEL SURFACE
Chemical Tempered, hardness ≧6H with AG coating; Haze: 5%
ASPECT RATIO
16:9
REFRESH RATE (HZ)
60
COMPATIBILITY
PC RESOLUTION (MAX)
1920x1080
MAC® RESOLUTION (MAX)
1920x1080
TOUCH
TOUCH TECHNOLOGY
Projective Capacitive
TOUCH POINTS
10-Point Touch
CONNECTOR
USB 3.1 TYPE A
2
USB 3.1 TYPE B
1
3.5MM AUDIO IN
1
3.5MM AUDIO OUT
1
VGA
1
HDMI 1.4
1
DISPLAY PORT
1
RS232
1
AUDIO
INTERNAL SPEAKERS
2W (x2)
VIDEO SIGNAL
FREQUENCY HORIZONTAL
15 ~ 90 KHz
FREQUENCY VERTICAL
50 ~ 76 Hz
VIDEO INPUT
DIGITAL SYNC
TMDS for HDMI (v1.4), PCI-E for DisplayPort (v1.2)
POWER
ECO MODE (CONSERVE)
19W
ECO MODE (OPTIMIZED)
22W
CONSUMPTION (TYPICAL)
32W
CONSUMPTION (MAX)
36W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.3W
CONTROLS
PHYSICAL CONTROLS
1, 2, Up, Down, Power
ON SCREEN DISPLAY
Auto image adjust, Contrast/Brightness, Input Select, Audio adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 - 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
ERGONOMICS
HEIGHT ADJUST
320 (landscape 0° to lay down 90.0°)
TILT (FORWARD/BACK)
4º / 90º
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
MOUNT
VESA COMPATIBLE
100 x 100 mm
WEIGHT (METRIC)
GROSS (KG)
10.2
NET (KG)
7.9
NET WITHOUT STAND (KG)
5.5
WEIGHT (IMPERIAL)
NET (LBS)
17.4
NET WITHOUT STAND (LBS)
12.2
GROSS (LBS)
22.6
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
753.0 x 525.0 x 204.0
PHYSICAL (MM)
660.0 x 443.0 x 239.0
PHYSICAL WITHOUT STAND (MM)
660.0 x 410.0 x 58.0
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
29.6 x 20.7 x 8.0
PHYSICAL (IN.)
26.0 x 17.5 x 9.4
PHYSICAL WITHOUT STAND (IN.)
26.0 x 16.2 x 2.3
GENERAL
REGULATIONS
MX-CoC, Mexico Energy, CE, CE EMC, CB
PACKAGE CONTENTS
TD2760 Touch Display, Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable (3.5mm audio male to male, 1.8m), Quick Start Guide
